B737 Cockpit DIY-Motion Flightsimulator Nico Weesjes

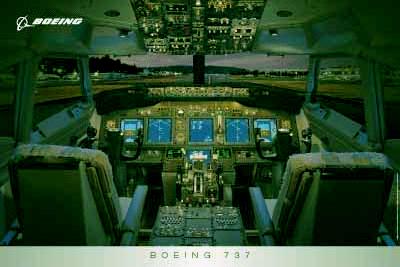

The original B737

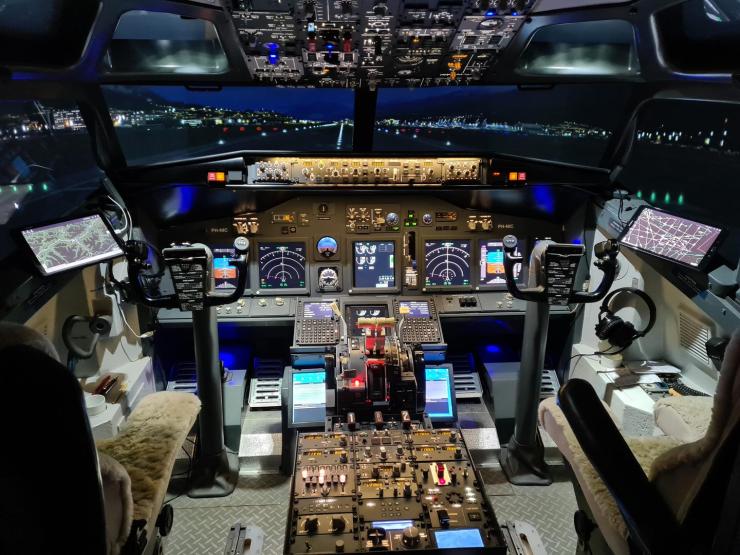

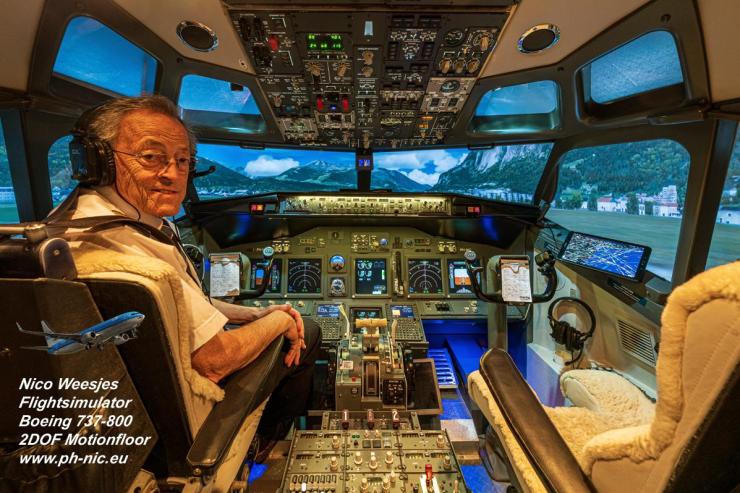

This is my cockpit B737




Details


Click and see more

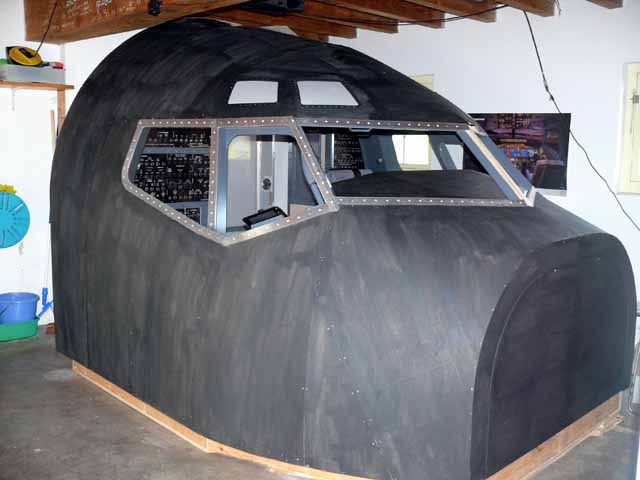

Shell

Click and see more

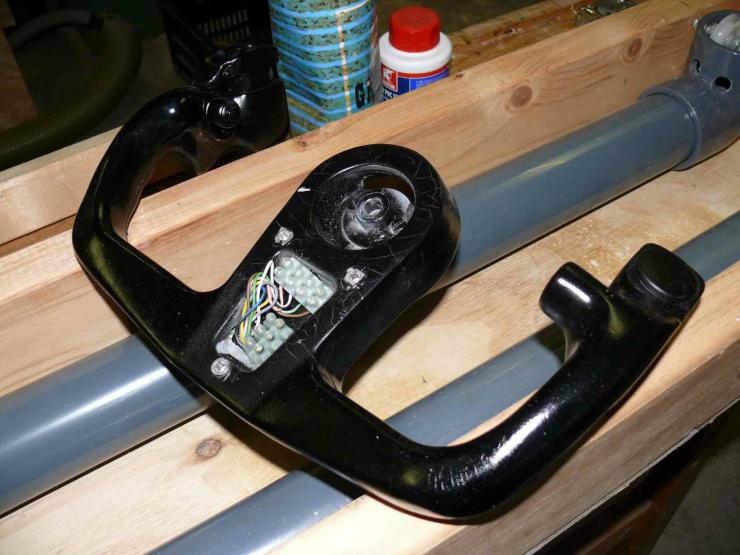

Yoke

Click and see more

Rudder

Click and see more

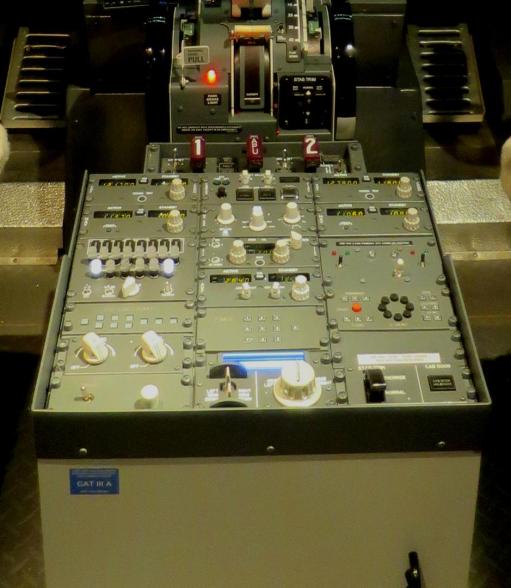

Pedestal

Click and see more

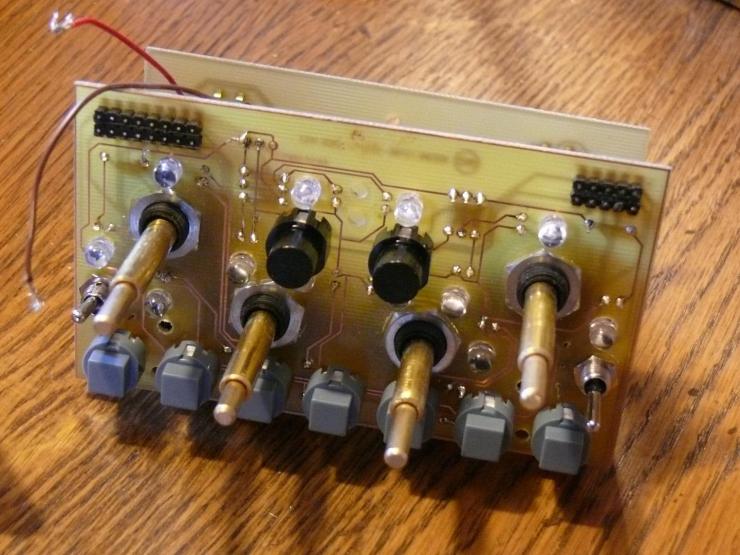

Electronics

Click and see more

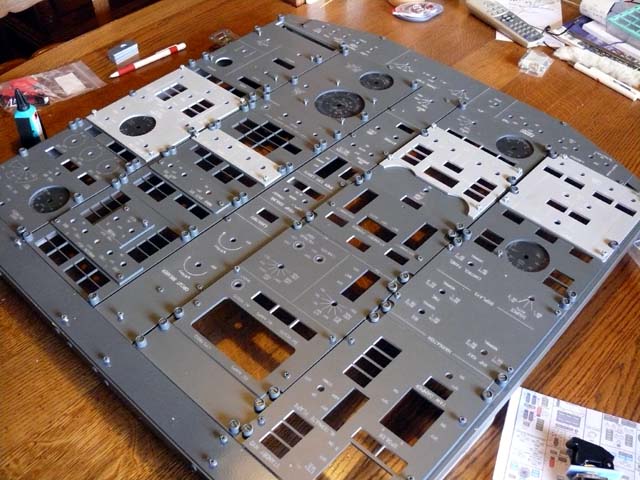

Panels

Click and see more

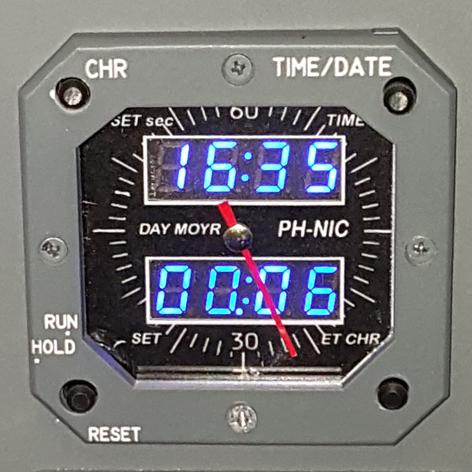

Chronometer

Click and see more

DIY-MotionPlatform

Click and see more



2 DOF technical details & €

Click and see more

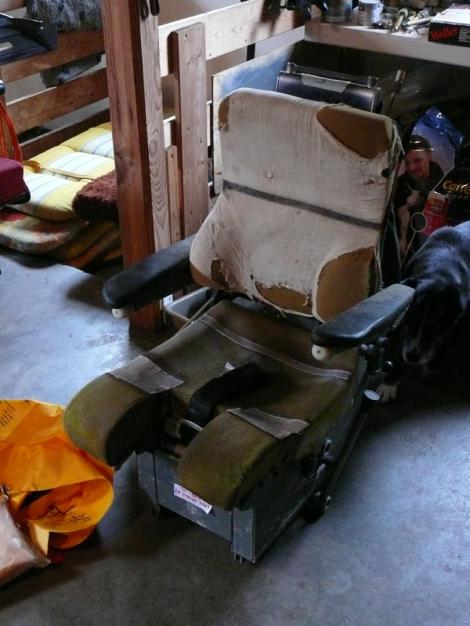

Reused gear F28

Click and see more

Dimensions B737

Click and see more

Projection

Click and see more


Pc 1

Windows 11

Intel Core i9 11900F processor be quiet! Dark Rock Pro 4, 250W TDP CPU cooler

Asus TUF GAMING H570-PRO dual PCI-express / dual m.2 slots

Corsair 16GB CL16 Vengeance LPX 3000 Mhz - totaal 64GB

Kingston KC2500 1000 GB m2 SSD 3500 MB/s lezen - 2900 MB/s schrijven - (OS + base system)

Kingston KC2500 2000 GB m2 SSD 3500 MB/s lezen - 2900 MB/s schrijven (extra opslag) be quiet!

GeForce RTX 2080 Ti

Soundblaster

Straight Power 11 Platinum 1000 watt, 80+ modulair

Antec NX210 systeembehuizing

Gainward GeForce GT710 2GD3H 2GB VGA kaart

Pc 2

Windows 10

Intel Core i5-661

Corsair 8GB DDR3 1066

Ati HD5770 1024MB DDR3

WD 1TB SATA-2

Samsung SH-S223C DVD/CD RW

Antec True power 650W

Lian-Li Pc 60 FN

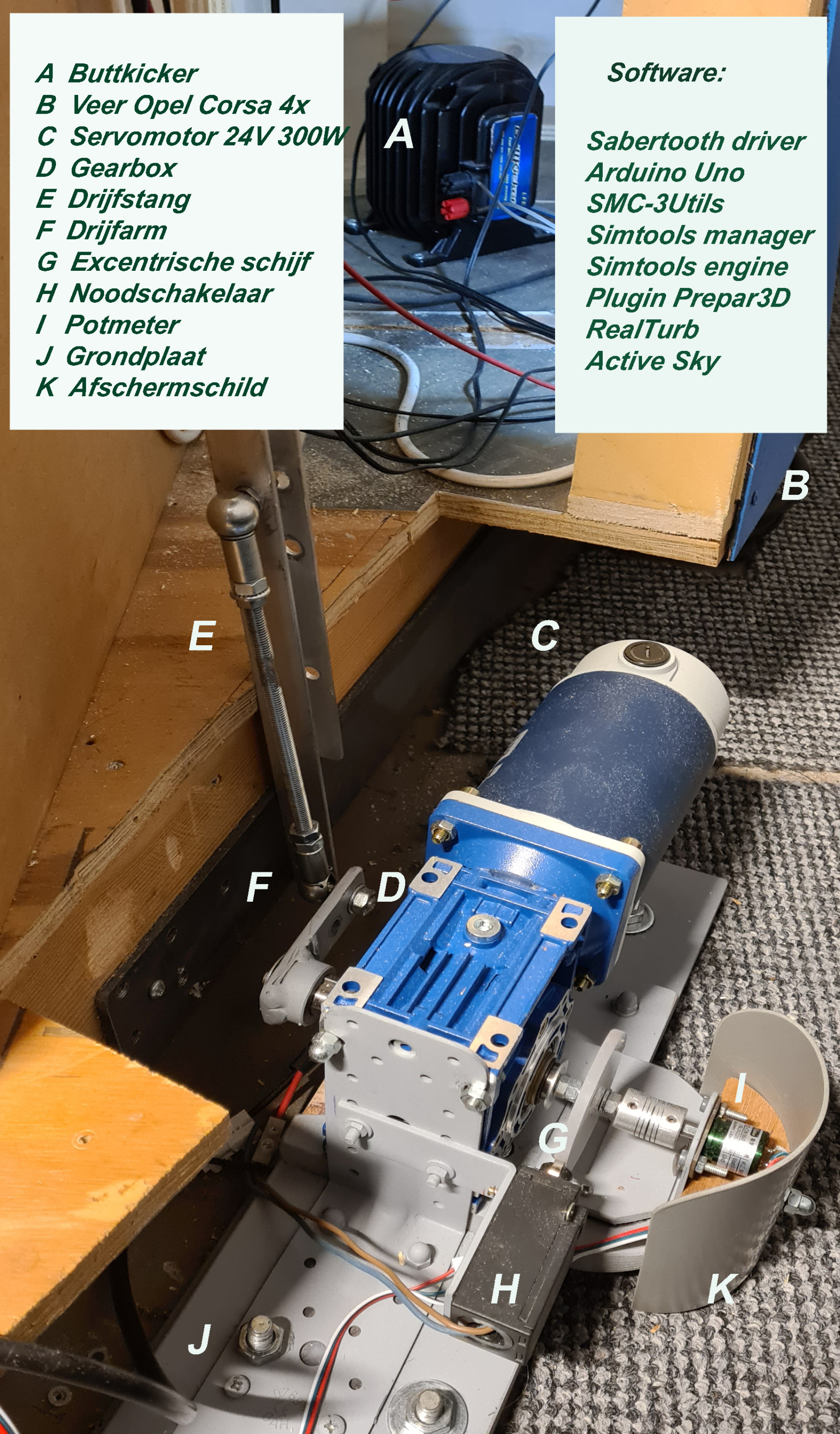

"Half Motion"

2 x 250 Watt Servo motors
24 volt

Arduino Uno R3 CH340G

Sabertooth 2x32A motor driver

DEScribe software

Arduino software

SMC3 software

SimTools Manager/Engine

Prepar3D plugin

Fibration

ButtKicker BK-LFE Kit

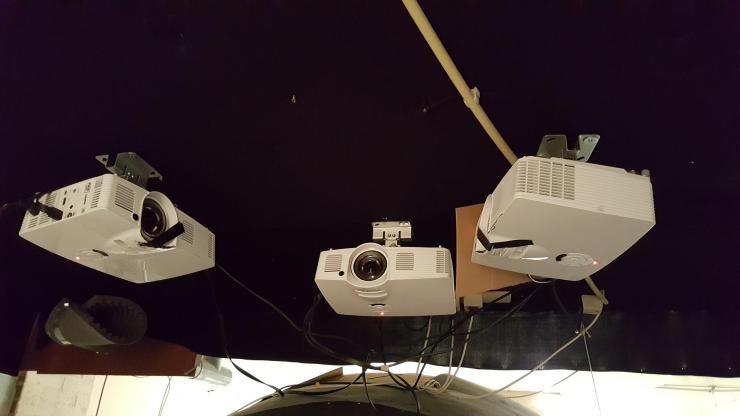

Projection

3 HD-Beamers

Optoma GT1080e (Wide angle)

Projection wall 7,50 m. x 1,75 m.

Angle 210o

11 Screens

2 x 19 inch 1024x768 MIP

1 x 10 Inch Upper eicas

1 x 10 Inch Lower Eicas

1 x FMC / CDU Captain

1 x FMC / CDU F / O

2 x 8 Inch   ATC / NAV / kneeboard

1 x 17 Inch 1024x768 clone beamer L

1 x 17 Inch 1024x768 clone beamer M

1 x 15 Inch 1024x768 clone Captain display

1 Tablet instr. station Captain

1 Tablet instr. station Co-Pilot

1 Screen Cabin door camera


Software

Microsoft Windows 11 pc 1

Microsoft Windows 10 pc 2

Prepar3D v5

Prosim 737 V2.29

Fly Elise-ng Immerisve Display PRO   (Warp and Blend)

CP-Flight

FSUIPC

WideFS

Client

EHID

Teamspeake

Discord

JoinFS

SimConnect X

Scenery ORBX,

Aerosoft

Little Navmap

Navigraph

Etc, etc,
